Standard Kitchen Cabinet Sizes: Base, Wall and Tall Guide
Standard base cabinets measure 34.5 inches in height and 24 inches in depth, with widths ranging from 12 to 48 inches in 3-inch increments.
Standard wall cabinets range from 12 to 42 inches in height and 12 inches in standard depth. Standard tall pantry cabinets measure 84 to 96 inches in height.
Understanding these dimensions before planning your kitchen layout prevents costly reorders, ensures appliances fit correctly, and helps you identify where custom sizing is the right specification.
Key Takeaways
- Standard base cabinets are 34.5 inches tall and 24 inches deep, with countertops bringing the finished working surface to the industry-standard 36-inch ergonomic working height used across residential kitchen design.
- Wall cabinets mount with their bottom edge 18 inches above the countertop surface, placing the top edge at 54 inches from the floor on a standard 36-inch counter height installation.
- Standard cabinet widths are produced in 3-inch increments from 12 inches to 48 inches. Any wall dimension that does not fall on a 3-inch increment requires filler strips to close the gap between the last cabinet and the adjacent wall or appliance.
- Tall pantry cabinets in 84-inch height suit 8-foot ceilings, while 90-inch and 96-inch heights suit 9-foot and 10-foot ceilings, respectively, with filler valances or crown molding bridging the gap to the ceiling above.
- Custom cabinet sizing becomes necessary for ceiling heights above 9 feet, integrated refrigerator panel depths, and kitchen layouts with irregular wall dimensions that standard 3-inch increment widths cannot resolve with filler strips alone.

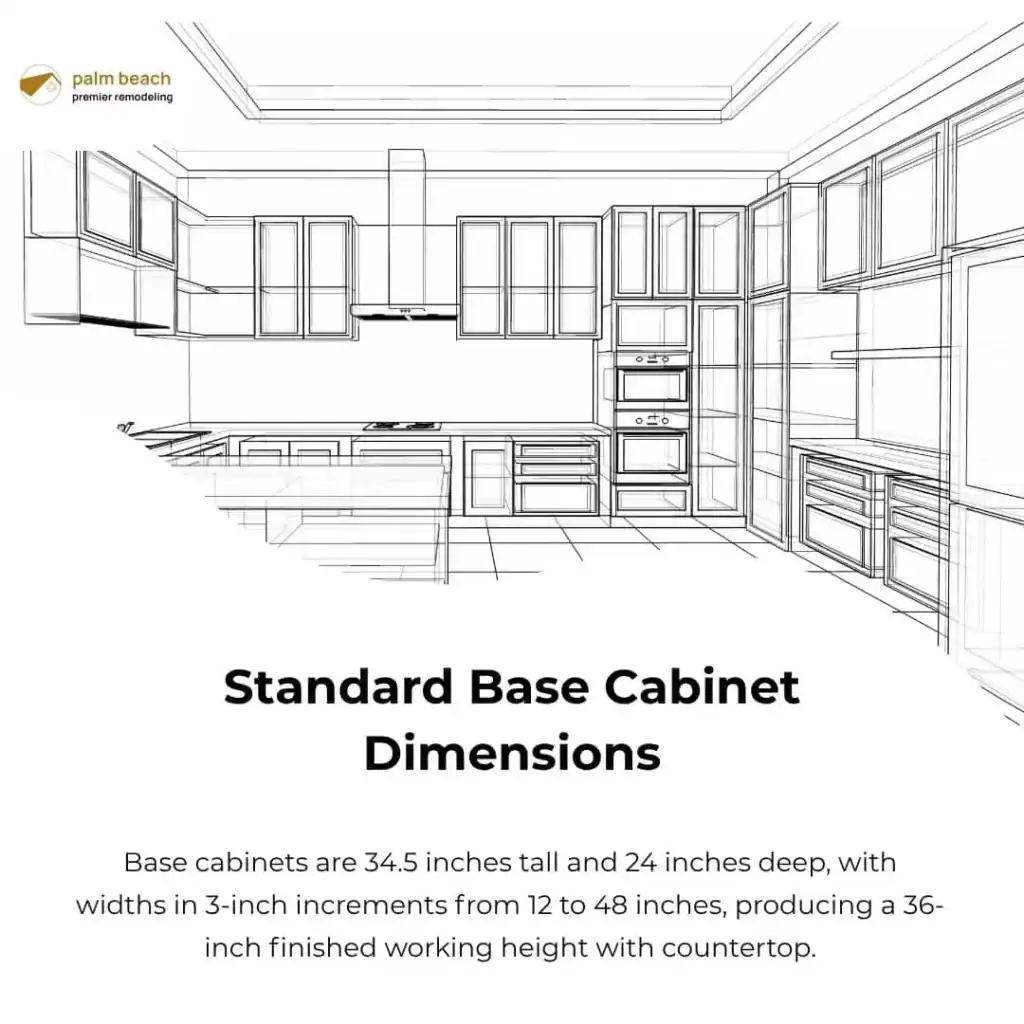

Standard Base Cabinet Dimensions
Standard base cabinets establish the foundational height, depth, and width grid on which every other dimension in the kitchen is built.
Base Cabinet Height and Depth
- Standard height 34.5 inches: All standard base cabinets are manufactured at 34.5 inches in height before the countertop is applied. A standard 1.5-inch thick countertop raises the finished working surface to exactly 36 inches from the finished floor, which the National Kitchen and Bath Association identifies as the ergonomic standard working height for kitchen preparation surfaces.
- Toe kick height and depth: The lower 4.5 inches of a standard base cabinet form the toe kick recess, which is cut back 3 to 3.5 inches from the cabinet face. This recess allows a person to stand close to the counter with their feet positioned naturally under the cabinet base without requiring a forward lean that strains the lower back during food preparation.
- Standard depth 24 inches: Standard base cabinet depth measures 24 inches from the wall to the face of the cabinet door. This depth accommodates standard dishwasher widths of 24 inches flush with the cabinet face and positions the sink basin correctly under standard window heights. It also matches the 24-inch depth of under-counter refrigerators from most appliance manufacturers.
Base Cabinet Width Chart
| Cabinet Type | Standard Widths Available | Standard Height | Standard Depth |
|---|---|---|---|
| Single door base | 9, 12, 15, 18, 21, 24 inches | 34.5 inches | 24 inches |
| Double door base | 24, 27, 30, 33, 36 inches | 34.5 inches | 24 inches |
| Drawer base | 12, 15, 18, 21, 24 inches | 34.5 inches | 24 inches |
| Sink base | 30, 33, 36 inches | 34.5 inches | 24 inches |
| Range base | 30, 36 inches | 34.5 inches | 24 inches |
| Corner base (blind) | 36, 39, 42 inches | 34.5 inches | 24 inches |
Specialty Base Cabinet Sizes
- Sink base cabinet: Sink base cabinets are produced in 30-inch and 36-inch widths as the most common residential sizes, matching the standard single-bowl and double-bowl undermount sink dimensions used in the majority of kitchen remodels. The sink base omits the bottom shelf and interior drawer boxes to accommodate the sink basin and plumbing connections below.
- Range base cabinet: Range base cabinets are produced in 30-inch and 36-inch widths to match standard freestanding and slide-in range widths from major appliance manufacturers. The range base opening is typically left open rather than fitted with a cabinet box, allowing heat clearance around the range and access to the gas or electrical connection behind the appliance.
- Corner base cabinet options: Blind corner base cabinets start at 36 inches wide and use a filler panel on one side to position the corner opening correctly. Lazy susan corner cabinets typically require 33 to 36 inches of wall space on each adjacent run to accommodate the rotating shelf diameter while maintaining the standard 24-inch depth on both cabinet runs.
Standard Wall Cabinet Dimensions
Wall cabinets mount above the countertop and base cabinets, with their dimensions governing the vertical storage volume and visual proportion of the upper kitchen cabinet run.
Wall Cabinet Height and Mounting Position
- Standard wall cabinet heights: Wall cabinets are manufactured in heights of 12, 15, 18, 24, 30, 36, and 42 inches. The 30-inch height is the most commonly specified in standard 8-foot ceiling kitchens, positioning the top of the wall cabinet at 84 inches from the floor when mounted 18 inches above a 36-inch countertop surface.
- Standard mounting height: Wall cabinets mount with their bottom edge 18 inches above the countertop surface. This clearance accommodates standard kitchen appliances including toasters, coffee makers, and stand mixers that typically measure 14 to 17 inches in height. The NKBA recommends a minimum 15-inch clearance for countertop appliance use below wall cabinets.
- Refrigerator-height wall cabinet: The wall cabinet positioned above the refrigerator uses a 24-inch depth rather than the standard 12-inch depth to align flush with the refrigerator face. This cabinet is typically 12 to 24 inches in height depending on the ceiling height and the top of refrigerator clearance available in the kitchen layout.
Wall Cabinet Width and Depth Chart
| Cabinet Type | Standard Widths | Standard Heights | Standard Depth |
|---|---|---|---|
| Single door wall | 9, 12, 15, 18, 21, 24 inches | 12, 15, 18, 24, 30, 36, 42 inches | 12 inches |
| Double door wall | 24, 27, 30, 33, 36 inches | 12, 15, 18, 24, 30, 36, 42 inches | 12 inches |
| Above refrigerator | 30, 33, 36 inches | 12, 15, 18, 24 inches | 24 inches |
| Microwave wall cabinet | 27, 30, 33, 36 inches | 18, 24 inches | 12 inches |
| Corner wall (blind) | 24, 27, 30 inches | 30, 36, 42 inches | 12 inches |
Standard Tall and Pantry Cabinet Dimensions
Tall cabinets span from the floor to within a few inches of the ceiling and serve as pantry storage, oven housing, or refrigerator enclosure columns in kitchen layouts with sufficient wall space to accommodate them.
Tall Cabinet Height Options by Ceiling Height
- 84-inch tall cabinets for 8-foot ceilings: An 84-inch tall cabinet reaches 7 feet from the finished floor, leaving approximately 12 inches of space between the cabinet top and a standard 8-foot ceiling. This gap is bridged with a matching valance, crown molding, or a short 12-inch wall cabinet placed above the tall cabinet to fill the remaining ceiling height.
- 90-inch tall cabinets for 9-foot ceilings: A 90-inch tall cabinet on a 9-foot ceiling leaves 18 inches of space above the cabinet. This gap is typically filled with a 12 to 15-inch wall cabinet above and a small crown molding detail at the ceiling line. The 90-inch height is the most commonly specified tall cabinet size in Palm Beach County new construction homes built after 2000.
- 96-inch tall cabinets for 10-foot ceilings: A 96-inch tall cabinet on a 10-foot ceiling leaves 24 inches of space that can accommodate a 24-inch wall cabinet positioned directly above, producing a full floor-to-ceiling cabinet column. Floor-to-ceiling tall cabinet installations create the most visually impactful cabinet wall in contemporary kitchen designs and require custom sizing for ceiling heights above 10 feet.
Tall Cabinet Width and Depth Chart
| Cabinet Type | Standard Widths | Standard Heights | Standard Depth |
|---|---|---|---|
| Pantry cabinet | 18, 24, 30, 33, 36 inches | 84, 90, 96 inches | 12 or 24 inches |
| Oven cabinet | 24, 27, 30, 33 inches | 84, 90, 96 inches | 24 inches |
| Refrigerator column | 30, 33, 36 inches | 84, 90, 96 inches | 24 inches |
Specialty and Corner Cabinet Sizes
Specialty cabinet configurations address the functional and spatial challenges that standard rectangular base, wall, and tall cabinets cannot resolve in kitchen layouts with corners, appliance cutouts, or equipment integration requirements.
Corner Cabinet Options
- Blind corner cabinet: A blind corner base cabinet occupies a corner position with one side extending into the adjacent cabinet run. The standard blind corner base measures 36 to 42 inches wide on the primary face and requires a filler strip on the adjacent run to maintain the correct door clearance. The interior corner storage is accessible through the main door opening with an extended reach or a pull-out organizer insert.
- Lazy susan corner cabinet: Lazy susan corner base cabinets feature rotating shelves mounted on a central pole inside a pie-cut or round door opening. The standard lazy susan cabinet requires 33 to 36 inches of wall run on each adjacent cabinet row. This accommodates the rotating shelf diameter and maintains the 24-inch standard depth on both cabinet runs meeting at the corner.
- Diagonal corner cabinet: A diagonal corner wall cabinet uses a 45-degree face panel at the corner position instead of a blind configuration. The standard diagonal wall cabinet requires 24 inches of wall space on each adjacent run. It provides more accessible interior storage than a blind corner because the full door opening faces the kitchen center diagonally.
Drawer and Pull-Out Specialty Sizes
- Drawer base cabinet widths: Drawer base cabinets are available in widths from 12 to 24 inches in 3-inch increments, with 18-inch and 24-inch sizes being the most frequently specified for utensil and cookware storage. Each drawer base contains three stacked drawers of equal or graduated height within the standard 34.5-inch box height.
- Pull-out trash and recycling units: Pull-out trash and recycling units fit inside 15-inch, 18-inch, and 21-inch base cabinet widths. Single-bin units fit a 15-inch base while double-bin recycling pull-outs require a minimum 21-inch base cabinet to accommodate two bins side by side with adequate clearance for smooth drawer slide operation.
- Spice pull-out and tray dividers: Vertical tray and spice pull-out units fit inside 9-inch and 12-inch base cabinets. They provide organized vertical storage for baking sheets, cutting boards, and spice bottles that would otherwise be inaccessible at the back of a standard shelf-equipped narrow base cabinet.
How to Measure Your Kitchen for Cabinets
Accurate kitchen measurement before ordering cabinets prevents gap and overhang problems that require expensive filler strips, returned materials, and delayed installation schedules.
Step-by-Step Kitchen Measurement Process
- Step 1: Measure all wall lengths: Measure each wall at three heights: floor level, countertop level, and wall cabinet level. Record the shortest measurement for each wall because walls in older homes are rarely perfectly parallel. Use the shortest dimension to ensure cabinets fit without requiring force during installation.
- Step 2: Mark all window and door openings: Record the width and location of every window, door, and opening on each wall. Note the height from the floor to the bottom of each window sill to verify that wall cabinets mounted at standard height do not conflict with window trim or sill height on the kitchen walls.
- Step 3: Locate all utility connections: Mark the exact location of every electrical outlet, switch, plumbing connection, and gas line on each wall. These locations determine where cabinet runs must stop, where range and sink base positions must fall, and where electrical boxes need to be relocated to align with the new cabinet layout. Standard kitchen countertop width is 25 to 25.5 inches, extending 1 to 1.5 inches beyond the 24-inch base cabinet depth as the standard front overhang.
- Step 4: Check ceiling height at multiple points: Measure ceiling height at four corners and the center of the room. Older Florida homes may have ceilings that vary by up to 1/2 inch across the room. This variation affects the height of crown molding, valances, and filler panels needed to achieve a clean ceiling line above the upper cabinet run.
- Step 5: Identify appliance locations and dimensions: Confirm the width, depth, and height of every appliance that fits within the cabinet run. Refrigerator cutout widths typically require 3 inches of clearance on each side beyond the appliance body for door swing and ventilation clearance as specified by the manufacturer’s installation requirements.
When Standard Sizes Do Not Fit
Standard cabinet sizes cannot accommodate every kitchen layout, and several specific conditions indicate that custom sizing is the more practical specification than attempting to force standard dimensions into the available space.
Situations That Require Custom Cabinet Sizing
- Ceiling heights above 9 feet: Standard tall cabinets top out at 96 inches. Kitchens with 10-foot, 11-foot, or 12-foot ceilings require custom height cabinets or stacked wall cabinet solutions. Standard 96-inch tall cabinets leave visually awkward gaps against these ceiling heights that cannot be resolved with standard filler sizes.
- Unusual wall dimensions: Wall lengths that do not resolve cleanly with standard cabinet widths and filler strips in the 3 to 9-inch filler range require custom-width cabinets to achieve a balanced, symmetrical layout. A wall measuring 113 inches cannot be divided into standard cabinet widths and standard filler sizes without creating an obviously off-center result visible from the kitchen entry.
- Integrated appliance depths: Counter-depth refrigerators and integrated dishwashers with custom panel fronts require cabinet depths and frame openings that differ from standard specifications. These appliances require cabinet design coordination with their specific depth, width, and hinge clearance requirements before the cabinet order is placed. Custom kitchen cabinets built to the exact appliance manufacturer specifications eliminate the filler strip workarounds that standard cabinet dimensions require around integrated refrigerators and dishwashers.
Filler Strips and How They Work
Filler strips are narrow panels of matching cabinet material used to close the dimensional gaps between standard cabinet widths and the measured wall length in a kitchen layout.
Filler Strip Sizing and Placement
- Standard filler widths: Filler strips are typically produced in 3-inch, 6-inch, and 9-inch widths that match the cabinet door and frame finish. Fillers wider than 9 inches generally look disproportionate relative to the adjacent cabinet doors and suggest that a custom cabinet width would produce a more balanced result than a large filler panel.
- Where fillers are placed: Filler strips are most commonly placed at the wall end of a cabinet run and at the junction between two perpendicular runs at a corner. They are also placed on both sides of a tall pantry cabinet that requires door swing clearance without interfering with adjacent handles or drawer pulls.
- Filler versus scribe molding: Filler strips close gaps between cabinet boxes and perpendicular walls or obstacles. Scribe molding fills the narrower, irregular gap between the top of a wall cabinet and a ceiling that is not perfectly level. Both filler strips and scribe molding are standard line items in any full kitchen remodel and are specified during the cabinet layout planning process before any material is ordered. Both are standard finishing components in professional cabinet installations and are specified during the cabinet layout planning process before any material is ordered.
Custom Kitchen Cabinet Fabrication at Palm Beach Premier Remodeling
Palm Beach Premier Remodeling designs and installs custom kitchen cabinets with precise sizing matched to each kitchen’s measured dimensions, ceiling height, appliance specifications, and design direction.
From Standard to Fully Custom Sizing
- Measurement and layout planning: Every Palm Beach Premier kitchen project begins with a full site measurement confirming wall lengths, ceiling heights, window positions, and utility locations before any cabinet dimensions are specified. This eliminates the filler strip overuse, appliance clearance problems, and ceiling gap issues that result from ordering cabinets from a box store layout tool without field verification.
- Custom height and width fabrication: The fabrication team produces cabinet boxes at any height or width required by the kitchen’s measured dimensions. Ceiling heights above 9 feet, unusual wall dimensions, and integrated appliance requirements are accommodated in the fabrication specification without requiring compromise to the kitchen’s design intent or visual balance.
- Full kitchen coordination: Custom cabinet sizing coordinates directly with countertop edge profiles, appliance opening dimensions, and the broader scope of the kitchen remodel. This single-source coordination eliminates the measurement errors that occur when cabinet, countertop, and appliance contractors work from separate sets of dimensions on the same project. Kitchen layouts that use irregular dimensions or ceiling heights above 9 feet almost always require custom sizing.
Frequently Asked Questions
What is the standard height of kitchen cabinets?
Standard base cabinets are 34.5 inches tall before the countertop is applied. A 1.5-inch countertop brings the working surface to 36 inches. Standard wall cabinets range from 12 to 42 inches in height. Tall pantry cabinets are 84 to 96 inches tall depending on ceiling height.
What is the standard depth of kitchen base cabinets?
Standard base cabinet depth is 24 inches from the wall to the cabinet door face. This accommodates standard 24-inch appliances including dishwashers and under-counter refrigerators. Wall cabinets use a standard 12-inch depth, with the exception of the cabinet above the refrigerator which is typically 24 inches deep to align flush with the appliance face.
What is the widest standard kitchen cabinet size?
Standard kitchen cabinets are produced up to 48 inches wide, though 36-inch wide double-door base and wall cabinets are more common because wider boxes become difficult to transport, handle, and install without sagging or racking. Base cabinets wider than 36 inches typically include a center stile or a center mullion to maintain structural integrity across the face frame or frameless box opening.
Do I need filler strips for kitchen cabinets?
Yes, if the sum of your cabinet widths in 3-inch increments does not equal your measured wall length exactly. Filler strips in 3, 6, and 9-inch widths close these gaps with matching material. If the required filler exceeds 9 inches, a custom cabinet width produces a better visual result than a disproportionately wide filler panel next to a standard cabinet door.
When should I order custom cabinet sizes instead of standard?
Custom cabinet sizing is the right choice for ceiling heights above 9 feet and wall dimensions that cannot be resolved with standard widths and reasonable filler sizes. It also applies to integrated appliance panel requirements and layouts where visual symmetry requires dimensions outside the standard 3-inch increment system.
What height should wall cabinets be mounted at?
Wall cabinets mount with the bottom edge 18 inches above the countertop surface, placing the bottom of the cabinet at 54 inches from the finished floor on a standard 36-inch counter height installation. The NKBA minimum clearance is 15 inches above the countertop for appliance use. Hoods and microwaves have specific mounting height requirements from the range manufacturer that override the standard 18-inch rule.
What is the standard distance between upper and lower kitchen cabinets?
The standard spacing between the countertop surface and the bottom of wall cabinets is 18 inches. This dimension accommodates standard countertop appliances and provides comfortable visual balance between the upper and lower cabinet runs. Range hoods and microwave hood combinations require manufacturer-specific heights above the range cooking surface that typically fall between 24 and 30 inches.
